SD-60C

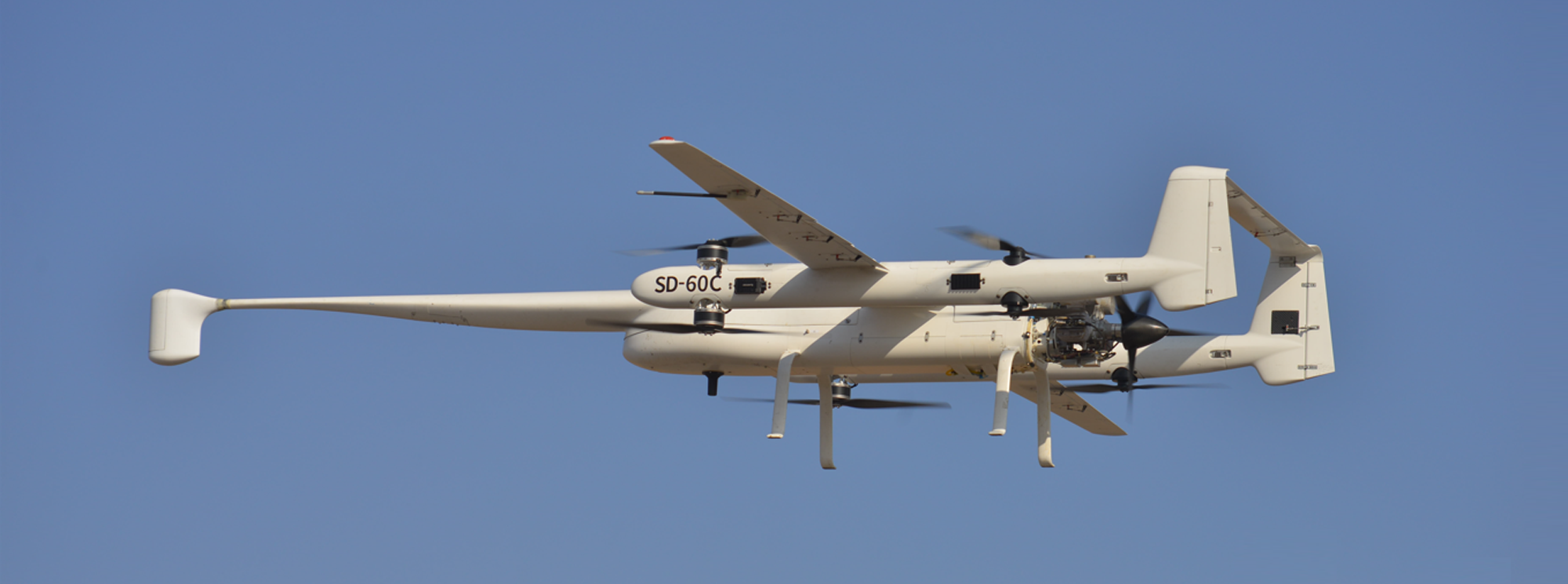

SD-60C is a 60kg industrial-grade hybrid vertical take-off and landing fixed-wing UAV with integrated aeromagnetic compensator, cesium optical pump magnetometer and fluxgate special instruments. It can complete a 500km survey line in a single flight.
58kg
Max Taking off Weight
15kg(燃油+载荷)
Max Payload Capacity
160km/h
Max Speed
4.5m
Wing Span
Technical characteristics
Equipped with industry-leading flight control and navigation systems, with health detection capabilities
Redundant design of avionics and fuselage structure, high safety
Large aspect ratio design, strong wind resistance, high wing load Large aspect ratio design, strong wind resistance, high wing load Large aspect ratio design, strong wind resistance and high wing load
Adapt to the harsh environment and operate normally; plateau, desert, open sea, low temperature, moderate rain
Technical parameter
-
Wing span 4.5mMax. Endurance 4h
-
Length 3.63mMax. payload Fuel+Payload
-
MTOW 58kgWind resistance 6 Level
-
Launch and recovery VTOLOperation temperature -20~+50℃
-
Power GFE/HFECruising speed 100~115km/h
-
Max. level speed 160km/hOperating radius According to data link configuration
-
Payload cabin dimension 500*320*200mmCeiling 5000m
-
Operation altitude 1000~3000mMax. takeoff 4000m
Industry application
It is widely used in many fields such as basic geological survey, mineral resource survey, ecological geological survey, maritime anti-submarine, and warship anti-magnetic radiation.
-
Geological survey
-
Mineral resources survey
-
Ecological Geological Survey
-
Antimagnetic Radiation of Warship
